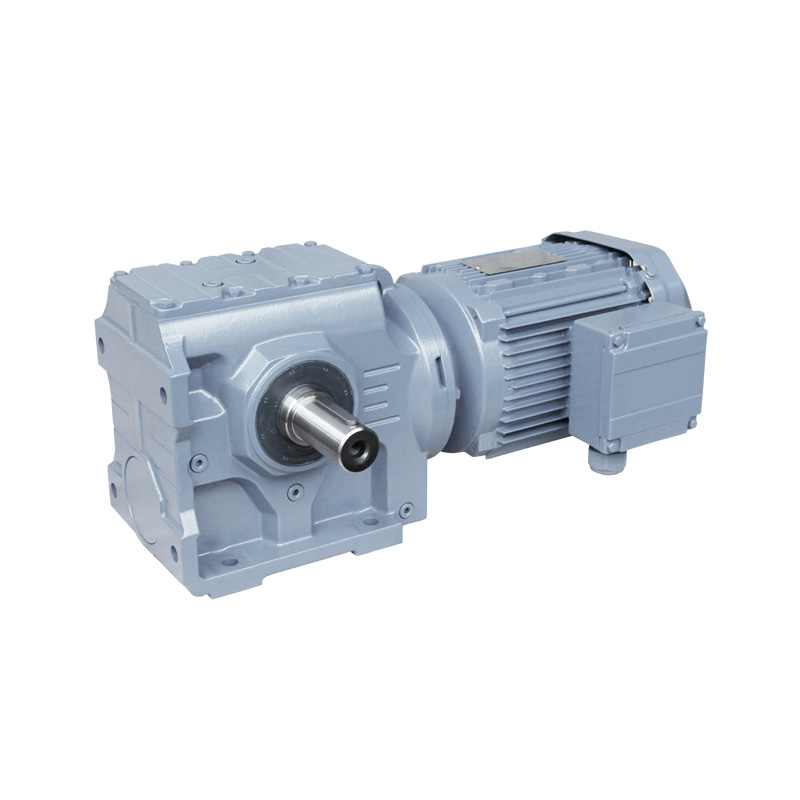

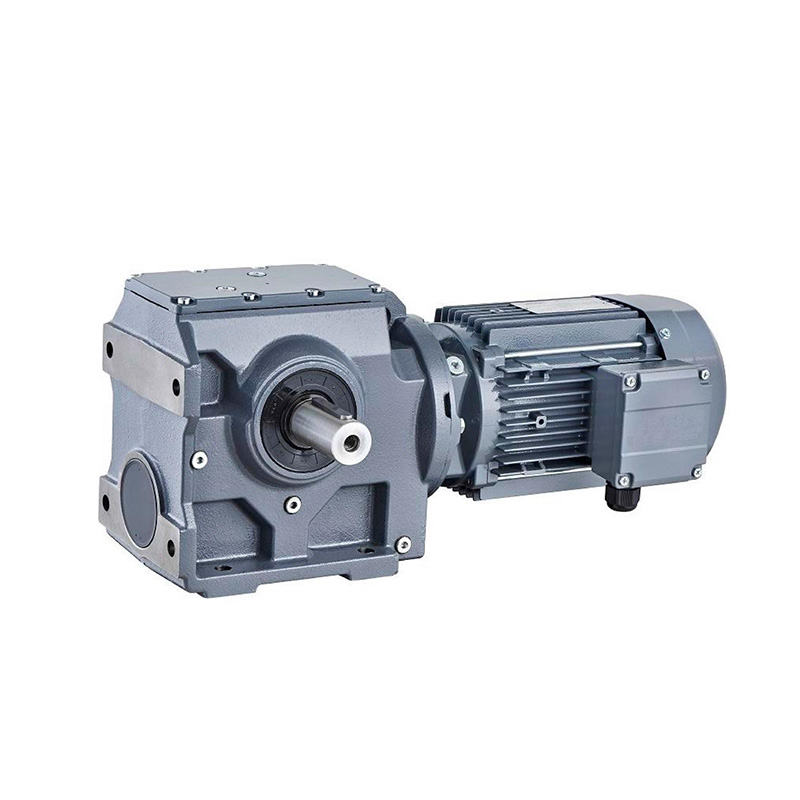

S Series Helical Worm Gear Reducer

Brand: GELE
Model: S series
Introduction: A. Small size, light weight, compact structure, strong carrying capacity;
B. Stable operation, low vibration, low noise and low temperature rise; c. Building block structure, convenient combination and strong versatility.
Technical Parameters:
Power: 0.12KW～22KW;
Torque: 10N·m～4890N·m;
Output speed: 0.12～397r/min;

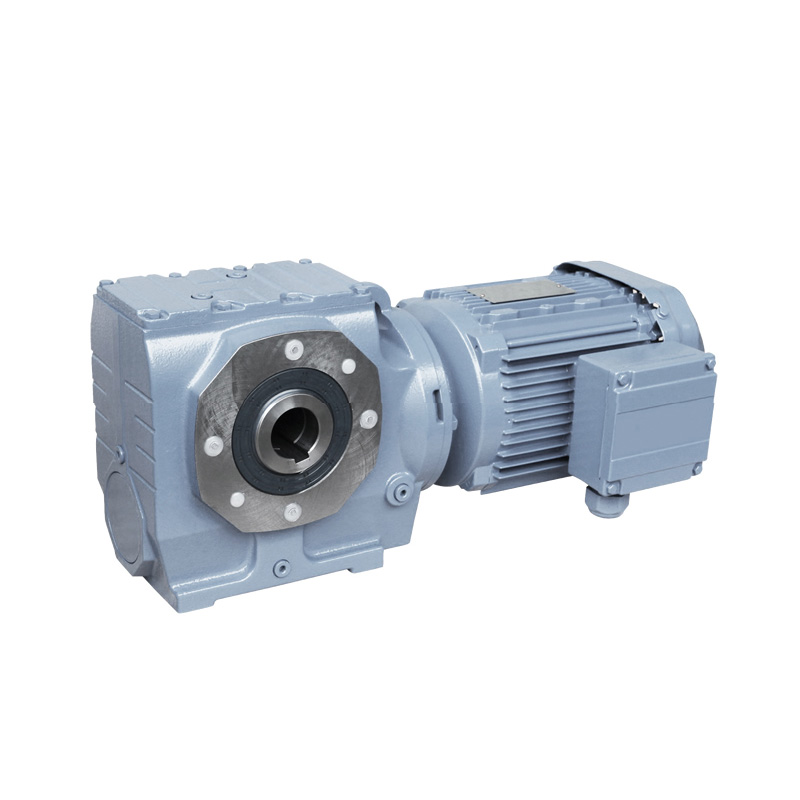

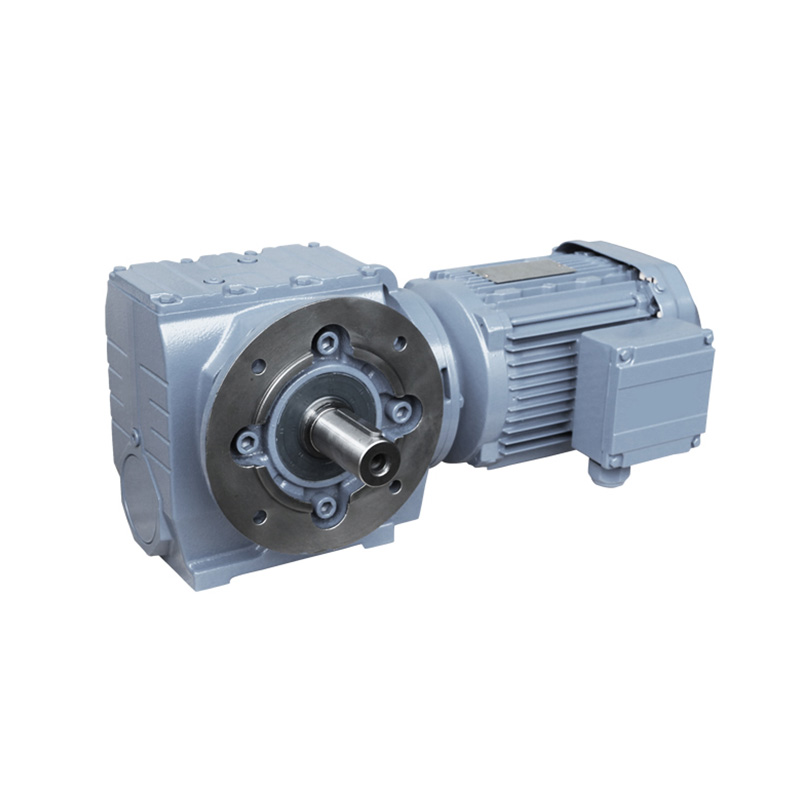

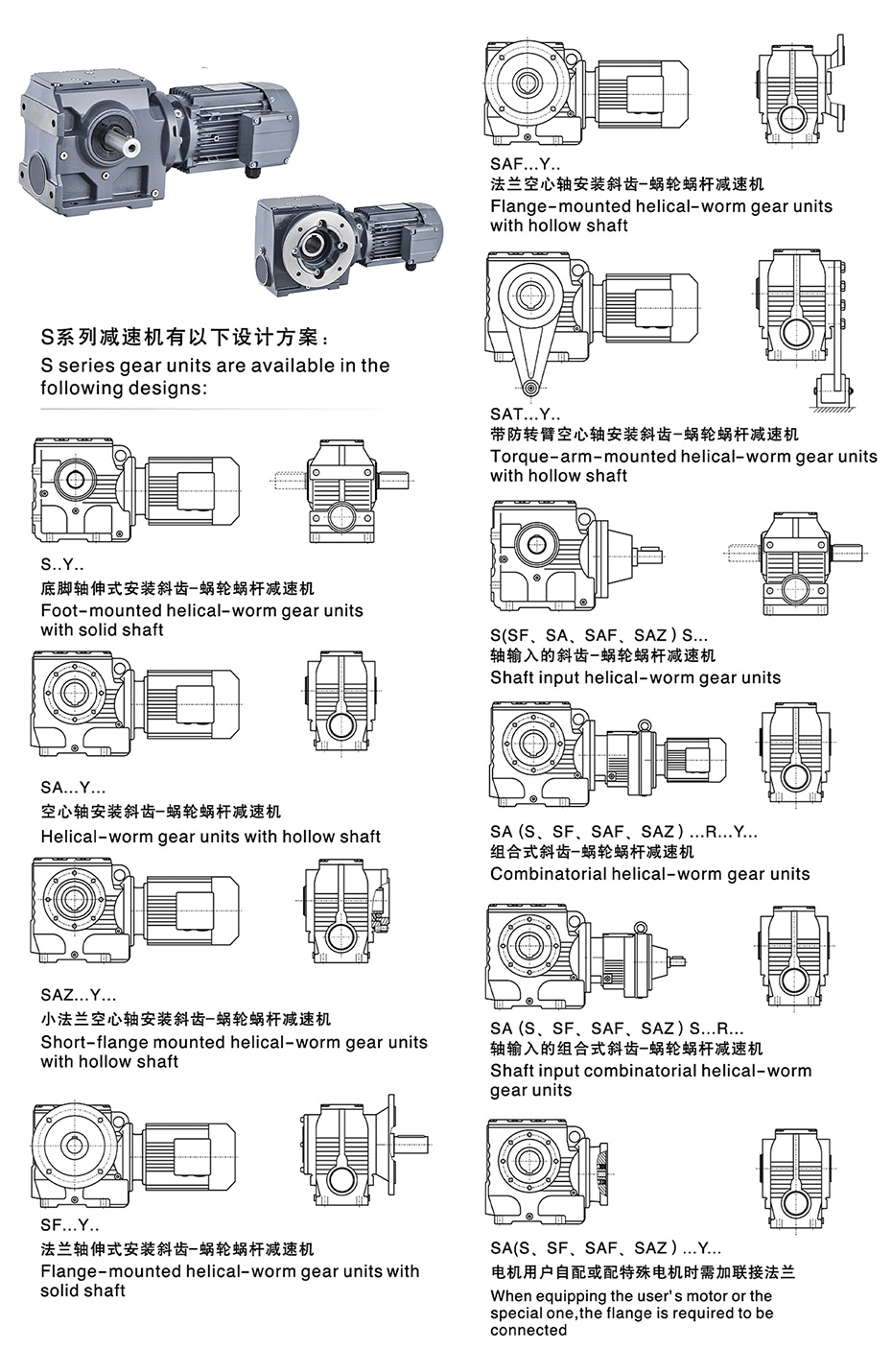

Structural form: S-shaft extension connection; SA-shaft installation connection; SF-shaft extension, flange installation; SAF-shaft installation, flange installation; SS-indicates shaft input
